    • High Frequency Hybrid Solar Inverter (HMS-6.2KW Pro)

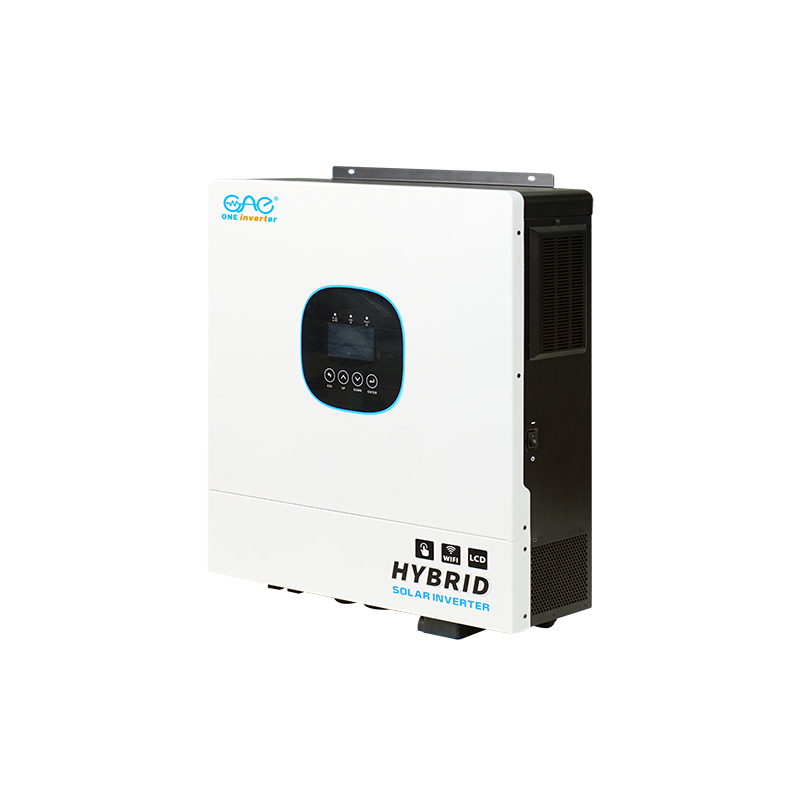

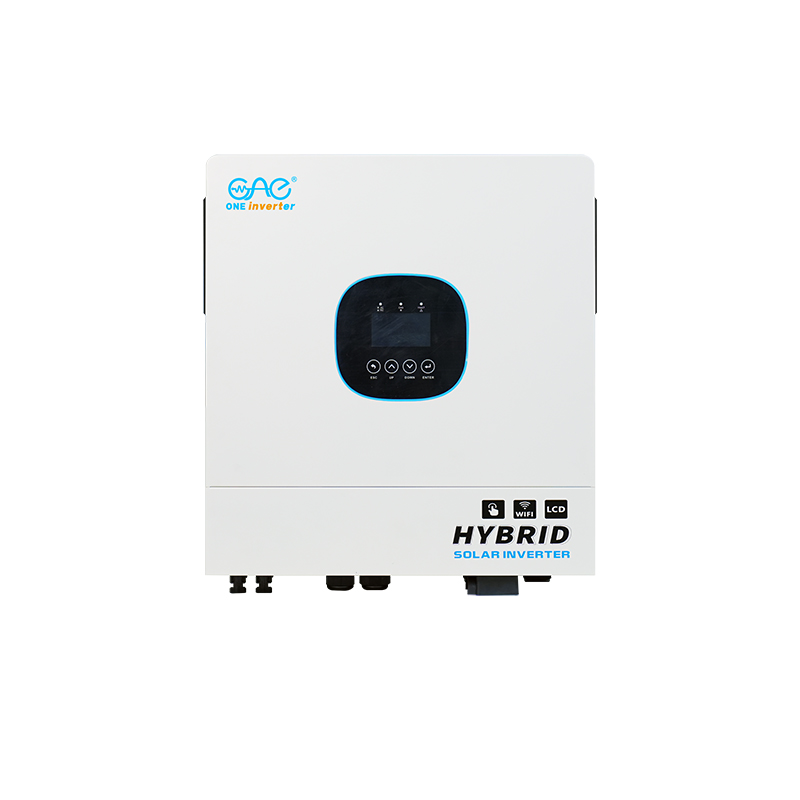

    High Frequency Hybrid Solar Inverter (HMS-6.2KW Pro)

    High Frequency Hybrid Solar Inverter (HMS-6.2KW Pro)

    Support Lithium Battery

    6.2KW Pro
    Inquiry

    Why High Frequency Hybrid Solar Inverter (HMS-6.2KW Pro)

    HMS series high frequency off grid inverter , thoughtfully design and optimized for small power supply system up to 6.2kw. with strong start-up power and exceptional stable power supply guarantee unrivaled performance,ensuring utmost energy potential for your power system.

    High Transfer Efficiency

    • High transfer efficiency is above 95%.

    MPPT Charge controller

    • Inbuilt 60A*2 MPPT
    • Maximum PV Array Power is 4000W*2 and the MAX PV input voltage is 500VDC.

    Parallel Function

    • Supports up to 6 units in parallel for greater power flexibility.

    Flexible Power Priority Settings

    • Choose from 3 charging modes and 3 output modes for tailored energy management.

    Multiple Protection

    • Built-in protections and auto-restart ensure maximum safety and longer system life.
    • 6.2KW Pro
    6.2KW Pro
    Surge Capacity 2*rated power for 5 seconds
    AC input 230VAC
    Max AC Input Voltage 300Vac
    Max AC Input Current 50A
    DC 48vdc
    Max Charging Current 60A X 2
    Dimension,
    D*W*H(MM)    		 461x508x133
    N.W.(KGS) 13.3
    dual mppt solar inverter
    Document
    HMS-6.2KW Pro Manual

    File

    HMS-6.2KW Pro Manual

    Formal

    PDF

    Downloads
