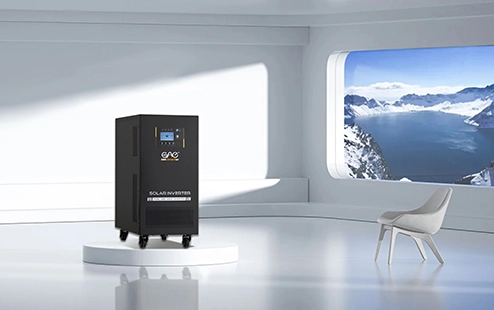

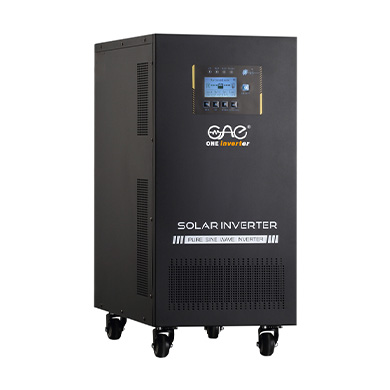

Pure Sine Wave Inverter with AC Charger (TD)
Support Lithium BatteryTD Series inverters support power systems up to 30kw with a switching time of less than 4 ms. With its powerful starting power and excellent stable power supply, it can ensure that your power system reaches its maximum energy potential.
| 10000W | |
| Peak power | 3times |
| AC input | 165-275VAC (220VAC) |
| AC charger | 20amp |
| DC | 48/96VDC |
| Battery type | LI-ION/SLA/AGM/Gel |
| Dimension, D*W*H(MM) |
650*110*890 710*420*920 |
| G.W.(KGS) | 82/102 |
| Remote Control | WIFI Box / External Screen (sell seperately) |
| 15000W – 20000W | |
| Peak power | 3times |
| AC input | 165-275VAC (220VAC) |
| AC charger | 20amp |
| DC | 192VDC |
| Battery type | LI-ION/SLA/AGM/Gel |
| Dimension, D*W*H(MM) |
750*460*1050 |
| G.W.(KGS) | 140/148 |
| Remote Control | WIFI Box / External Screen (sell seperately) |
| 30000W | |
| Peak power | 3times |
| AC input | 165-275VAC (220VAC) |
| AC charger | 20amp |
| DC | 192VDC |
| Battery type | LI-ION/SLA/AGM/Gel |
| Dimension, D*W*H(MM) |
800*500*1100 |
| G.W.(KGS) | 153 |
| Remote Control | WIFI Box / External Screen (sell seperately) |
