    • High Frequency Hybrid Solar Inverter (TEL-5KW)

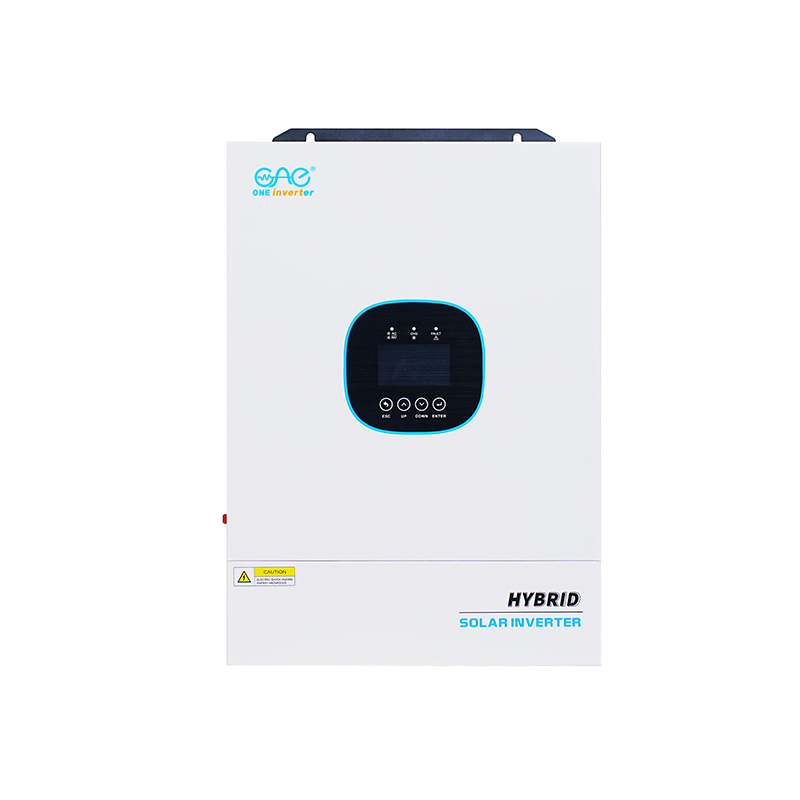

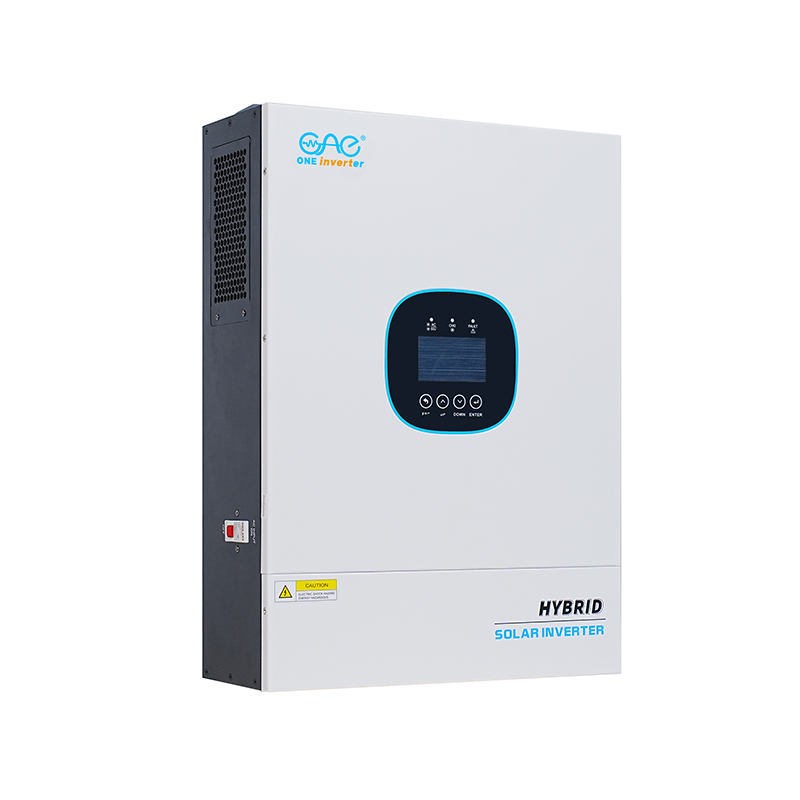

    High Frequency Hybrid Solar Inverter (TEL-5KW)

    High Frequency Hybrid Solar Inverter (TEL-5KW)

    Support Lithium Battery

    5KW
    Inquiry

    Why High Frequency Hybrid Solar Inverter (TEL-5KW)

    TEL series high frequency off grid inverter , thoughtfully design and optimized for small power supply system up to 5kw. with strong start-up power and exceptional stable power supply guarantee unrivaled performance,ensuring utmost energy potential for your power system.

    High Transfer Efficiency

    • High transfer efficiency is above 95%.

    MPPT Charge controller

    • Inbuilt 100A MPPT
    • Maximum PV Array Power is 5500W and the MAX PV input voltage is 500VDC.

    Parallel Function

    • Supports up to 6 units in parallel for greater power flexibility.

    Flexible Power Priority Settings

    • Choose from 3 charging modes and 3 output modes for tailored energy management.

    Multiple Protection

    • Built-in protections and auto-restart ensure maximum safety and longer system life.
    • 5KW
    5KW
    Surge Capacity 10000VA
    AC input 120VAC
    Max Pv input power 5500W
    Max Pv input current 22A
    DC 48vdc
    Max charger current 0-100A
    Dimension,
    D*W*H(MM)    		 499x340x143
    N.W.(KGS) 12.7
    solar inverter 5kw 120v
    Document
    TEL-5KW Manual

    File

    TEL-5KW Manual

    Formal

    PDF

    Downloads
