    • High Frequency Hybrid Solar Inverter (HMS-5.6KW)

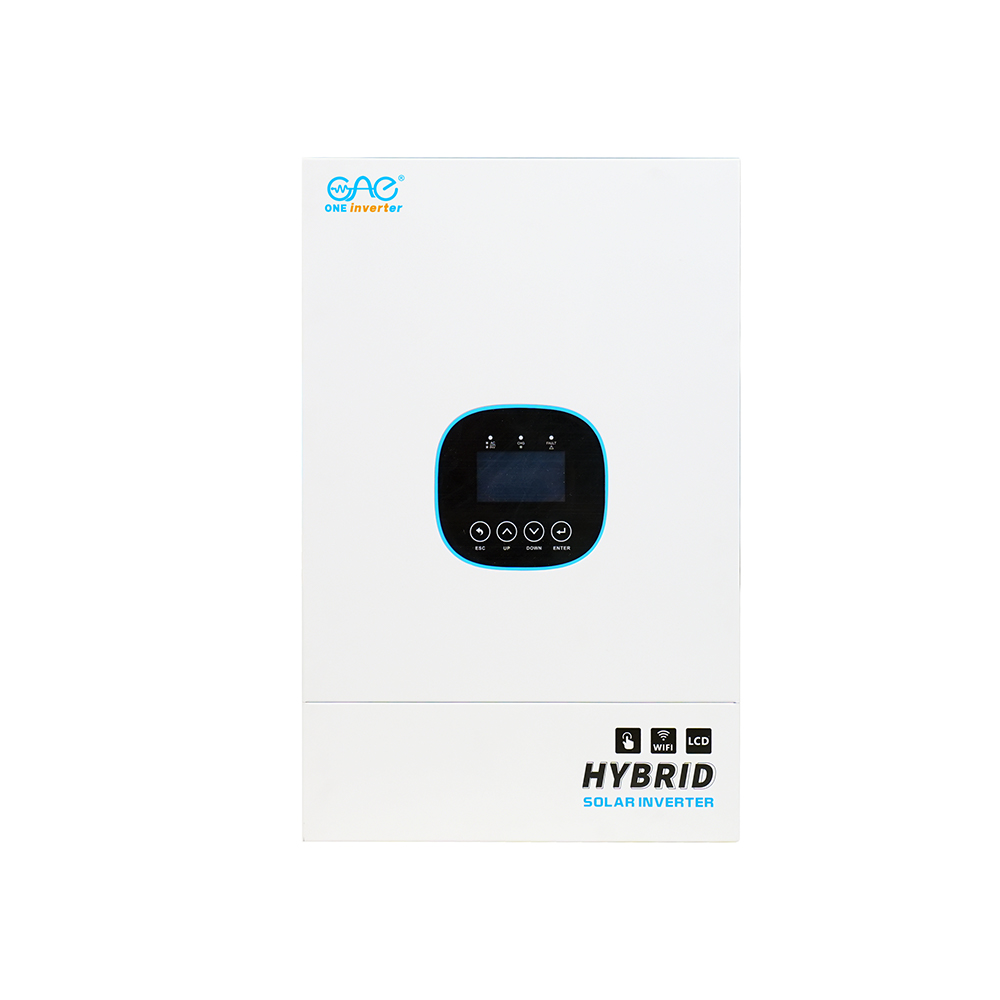

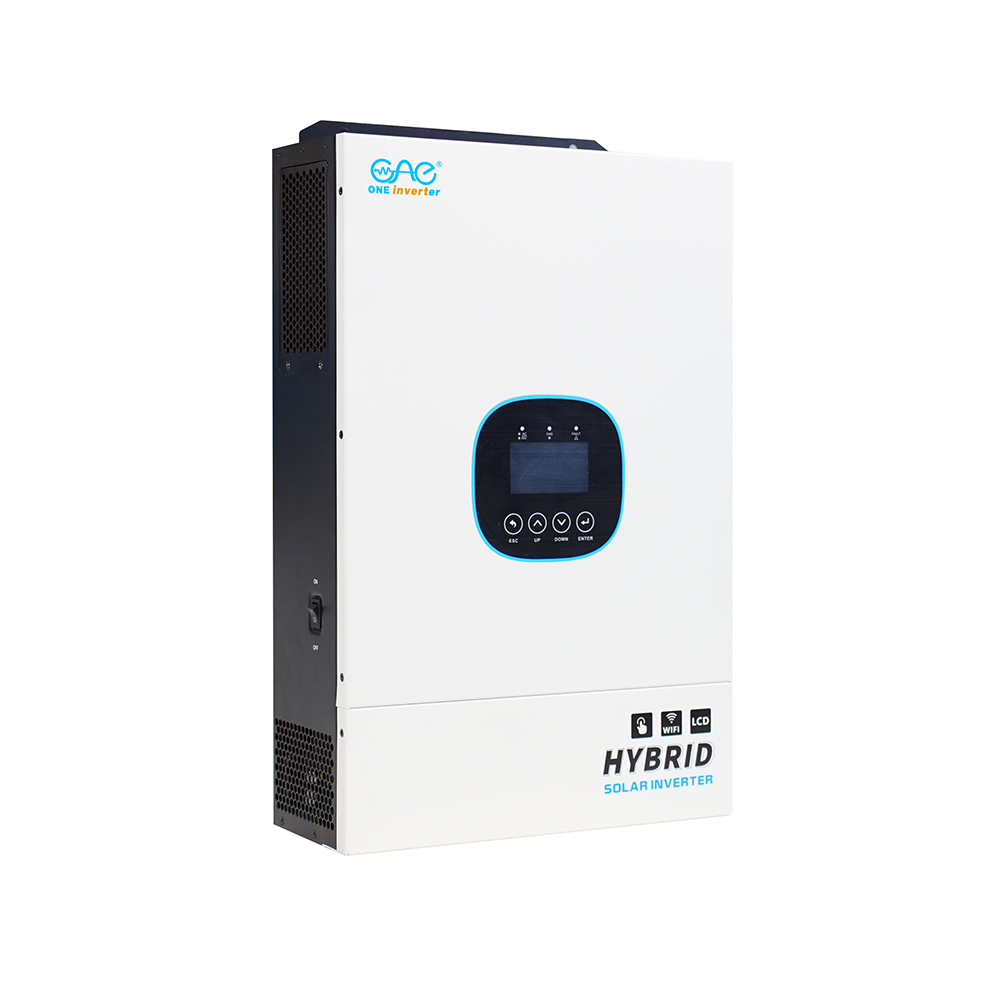

    High Frequency Hybrid Solar Inverter (HMS-5.6KW)

    High Frequency Hybrid Solar Inverter (HMS-5.6KW)

    Support Lithium Battery

    5.6KW
    Inquiry

    Why High Frequency Hybrid Solar Inverter (HMS-5.6KW)

    HMS series high frequency off grid inverter , thoughtfully design and optimized for small power supply system up to 5.6kw. with strong start-up power and exceptional stable power supply guarantee unrivaled performance,ensuring utmost energy potential for your power system.

    High Transfer Efficiency

    • High transfer efficiency is above 95%.

    MPPT Charge controller

    • Inbuilt 100A MPPT
    • Maximum PV Array Power is 6000W and the MAX PV input voltage is 500VDC.

    Parallel Function

    • Supports up to 6 units in parallel for greater power flexibility.

    Flexible Power Priority Settings

    • Choose from 3 charging modes and 3 output modes for tailored energy management.

    Multiple Protection

    • Built-in protections and auto-restart ensure maximum safety and longer system life.
    • 5.6KW
    5.6KW
    Surge Capacity 11200VA
    AC input 230VAC
    Max Pv input power 6000W
    Max Pv input current 22A
    DC 48vdc
    Max charger current 100A
    Dimension,
    D*W*H(MM)    		 455x340x140
    N.W.(KGS) 11.5
    5.6kW off-grid solar inverter
    Document
    HMS-5.6KW Manual

    File

    HMS-5.6KW Manual

    Formal

    PDF
